VECTOR® CTO
PTCA Balloon Catheter

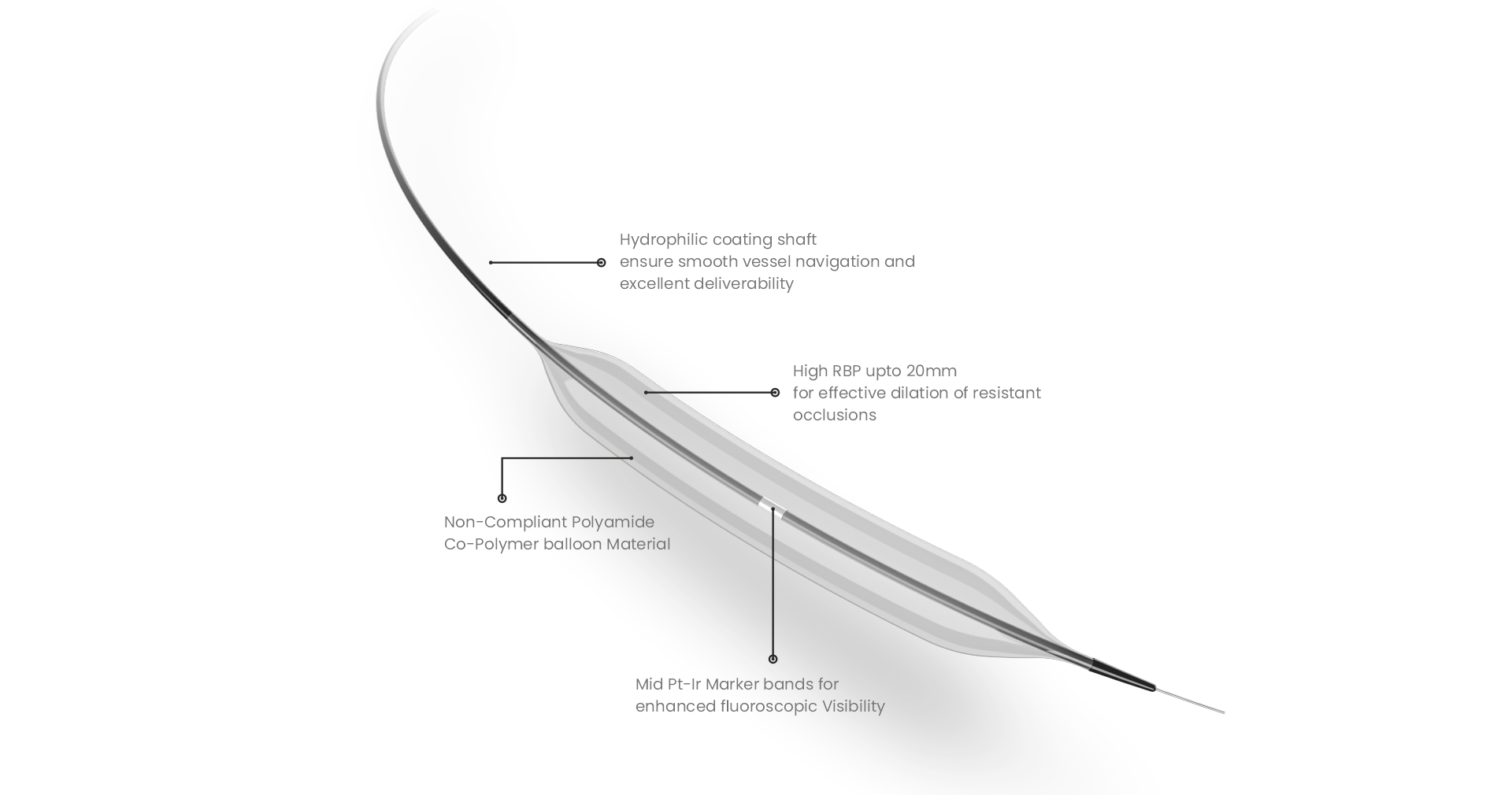

ULTRA-LOW TIP ENTRY PROFILE
Ultra-low tip entry profile promotes easier lesion access and improved access in complex CTO anatomy.
Specifications
0.75, 1.00, 1.25, 1.50, 1.75, 2.00
5, 7, 10, 12, 14, 16, 18, 20, 25, 29
145 cm
0.016"
0.6 mm
14 atm
20 atm
0.014"
2 Fr
2.6 Fr
DOWNLOAD e-BROCHURE
We strive to provide you with the detailed information of your desired choice of product.
The product story folded in the brochure to unfold the same download e-Brochure and know more about the key features, benefits, technical specifications and others.
Inquiry Now Download e-BrochureMore awesome features
See some of our awesome key features
Technical Data
Compliance Chart
| Pressure (atm) |
Diameter | |||||||
|---|---|---|---|---|---|---|---|---|
| 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | ||||
| 8 | 0.69 | 0.95 | 1.13 | 1.38 | 1.91 | |||
| 10 | 0.71 | 0.96 | 1.18 | 1.40 | 1.93 | |||
| 12 | 0.73 | 0.98 | 1.20 | 1.42 | 1.97 | |||
| 14 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | |||
| 16 | 0.77 | 1.02 | 1.28 | 1.52 | 2.05 | |||
| 18 | 0.79 | 1.04 | 1.30 | 1.54 | 2.07 | |||
| 20 | 0.81 | 1.05 | 1.32 | 1.57 | 2.10 | |||
| 22 | 0.83 | 1.06 | 1.34 | 1.58 | 2.13 | |||
| Nominal Pressure (NP) | Rated Burst Pressure (RBP) |
Ordering Information
| Balloon Diameter (mm) | Balloon Length (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 7 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 29 | |
| 0.75 | VCT 7505 | VCT 7507 | VCT 7510 | VCT 7512 | VCT 7514 | VCT 7516 | VCT 7518 | VCT 7520 | VCT 7525 | VCT 7529 |
| 1.00 | VCT 0105 | VCT 0107 | VCT 0110 | VCT 0112 | VCT 0114 | VCT 0116 | VCT 0118 | VCT 0120 | VCT 0125 | VCT 0129 |
| 1.25 | VCT 1205 | VCT 1207 | VCT 1210 | VCT 1212 | VCT 1214 | VCT 1216 | VCT 1218 | VCT 1220 | VCT 1225 | VCT 1229 |
| 1.50 | VCT 1505 | VCT 1507 | VCT 1510 | VCT 1512 | VCT 1514 | VCT 1516 | VCT 1518 | VCT 1520 | VCT 1525 | VCT 1529 |
| 2.00 | VCT 0205 | VCT 0207 | VCT 0210 | VCT 0212 | VCT 0214 | VCT 0216 | VCT 0218 | VCT 0220 | VCT 0225 | VCT 0229 |
