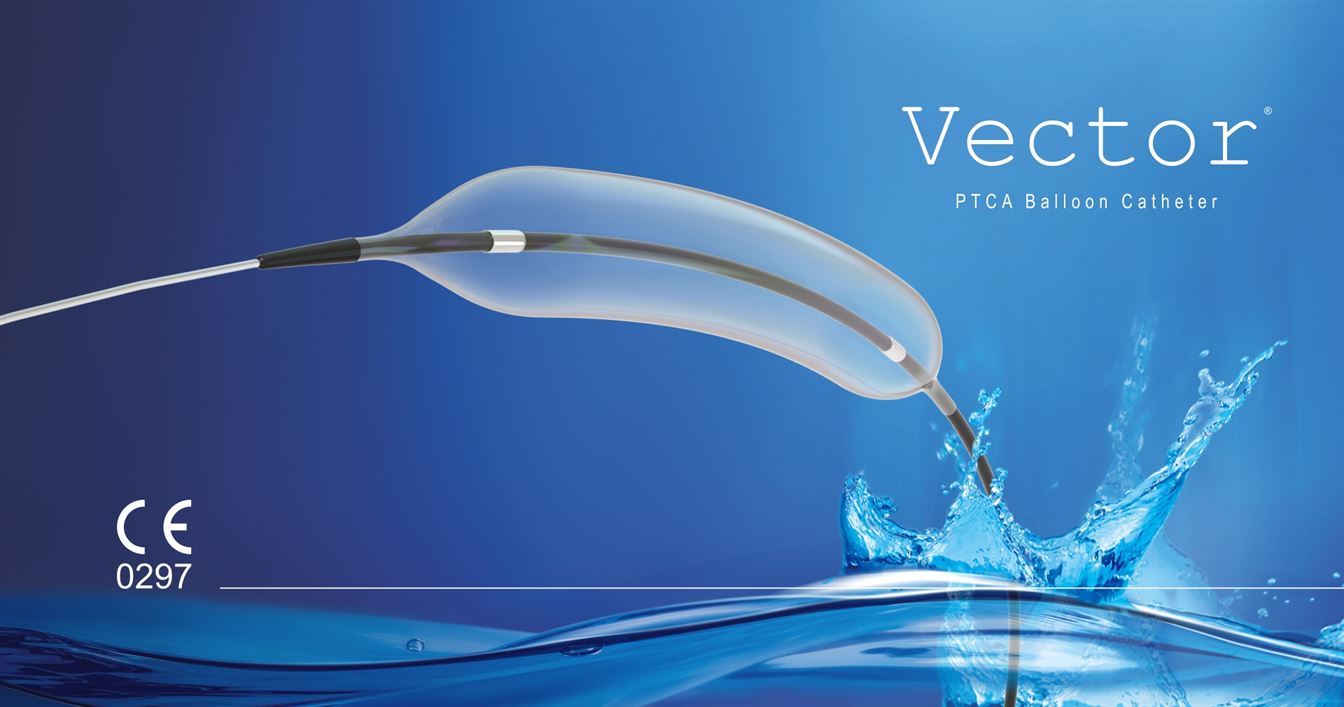

Product Vector - PTCA Balloon Catheter

The Intuitive Technology -
SLTL pursues an easy-to-use "Advanced features" by adopting world's ahead laser technologies for manufacturing of Vector PTCA Balloon Catheter, It is an all polyamide balloon construction that runs on low friction technology.


An Unquestioned Design -
It is a design vision that adds panache in Vector features. It is an inspired collection of fine points that makes an impressive stance while performing.


• Low balloon profile with excellent rewrap
• Tapered tip with low entry profile
• Elongated 4mm tip for distal stability & guidewire support
• PTFE coated proximal shaft for easy navigation
• Optimal Trackability and Pushability

Specifications



Balloon fold

Trifold

Entry Profile

0.016"

Rapid Exchange Length

25 cm

Usable Length

145 cm

Guide Wire Compatibility

0.014"

Guide Catheter Compatibility

5F

Balloon Material

Polyamide Co Polymer


Hydrophilic Coating

Balloon Diameter

1.0 to 4.5 mm

Balloon Length

7.0 to 45.0 mm

Nominal Pressure

6 Bar

Rate Burst Pressure

16/14 Bar

Marker

Platinum-Iridium

Balloon Profile (1.0 to 4.5mm)

0.65 to 0.95mm

Distal Shaft

2.6 F

Proximal shaft diameter

2F

YOUR NEED OUR INNOVATION

DOWNLOAD e-BROCHURE

We strive to provide you with the detailed information of your desired choice of product.

The product story folded in the brochure to unfold the same download e-Brochure and know more about the key features, benefits, technical specifications and others.

Inquiry Now Download e-Brochure

An Exemplary Safety

SLTL takes great pride in providing advanced compatibility engineering for minimizing injuries to occupants . It is a design idiom, compatible materials and exquisite workmanship that provides the confident path towards the high level of suitability

A Performance Efficiency

SLTL believes that Vector is a "Laser fast". It goes beyond the conventional expectation of PTCA balloon catheter with it's ingenious features. Vector enables you to achieve unimaginable , with it's cutting edge performance.

The Intuitive Technology

SLTL pursues an easy-to-use "Advanced features" by adopting world's ahead laser technologies for manufacturing of Vector PTCA Balloon Catheter, It is an all polyamide balloon construction that runs on low friction technology.

An Unquestioned Design

It is a design vision that adds panache in Vector features. It is an inspired collection of fine points that makes an impressive stance while performing.

  • Low balloon profile with excellent rewrap
  • Tapered tip with low entry profile
  • Elongated 4mm tip for distal stability & guidewire support
  • PTFE coated proximal shaft for easy navigation
  • Optimal Trackability and Pushability

Technical Data

Ordering Information

Length (mm)1.00 mm1.25 mm1.50 mm2.00 mm2.25 mm2.50 mm2.75 mm3.00 mm3.50 mm4.00 mm4.50 mm
07 mmVC 0710VC 0712VC 0715VC 0720VC 0722VC 0725VC 0727VC 0730VC 0735VC 0740VC 0745
10 mmVC 1010VC 1012VC 1015VC 1020VC 1022VC 1025VC 1027VC 1030VC 1035VC 1040VC 1045
12 mmVC 1210VC 1212VC 1215VC 1220VC 1222VC 1225VC 1227VC 1230VC 1235VC 1240VC 1245
14 mmVC 1410VC 1412VC 1415VC 1420VC 1422VC 1425VC 1427VC 1430VC 1435VC 1440VC 1445
16 mmVC 1610VC 1612VC 1615VC 1620VC 1622VC 1625VC 1627VC 1630VC 1635VC 1640VC 1645
18 mmVC 1810VC 1812VC 1815VC 1820VC 1822VC 1825VC 1827VC 1830VC 1835VC 1840VC 1845
20 mmVC 2010VC 2012VC 2015VC 2020VC 2022VC 2025VC 2027VC 2030VC 2035VC 2040VC 2045
25 mmVC 2510VC 2512VC 2515VC 2520VC 2522VC 2525VC 2527VC 2530VC 2535VC 2540VC 2545
29 mmVC 2910VC 2912VC 2915VC 2920VC 2922VC 2925VC 2927VC 2930VC 2935VC 2940VC 2945
34 mmVC 3410VC 3412VC 3415VC 3420VC 3422VC 3425VC 3427VC 3430VC 3435VC 3440VC 3445
39 mmVC 3910VC 3912VC 3915VC 3920VC 3922VC 3925VC 3927VC 3930VC 3935VC 3940VC 3945
43 mmVC 4310VC 4312VC 4315VC 4320VC 4322VC 4325VC 4327VC 4330VC 4335VC 4340VC 4345
45 mmVC 4510VC 4512VC 4515VC 4520VC 4522VC 4525VC 4527VC 4530VC 4535VC 4540VC 4545

Compliance Chart

Pressure (bar) 1.00 mm 1.25 mm 1.50 mm 2.00 mm 2.25 mm 2.50 mm 2.75 mm 3.00 mm 3.50 mm 4.00 mm 4.50 mm
 2 0.86 0.98 1.35 1.83 1.95 2.23 2.47 2.72 3.25 3.75 4.30
 4 0.95 1.18 1.45 1.92 2.15 2.37 2.61 2.86 3.38 3.88 4.42
 6 1.00 1.25 1.50 2.00 2.25 2.50 2.75 3.00 3.50 4.00 4.50
 8 1.02 1.28 1.55 2.05 2.30 2.55 2.84 3.09 3.61 4.12 4.57
 9 1.03 1.30 1.57 2.07 2.32 2.60 2.86 3.13 3.66 4.18 4.64
 10 1.04 1.32 1.58 2.10 2.35 2.65 2.89 3.16 3.71 4.23 4.71
 11 1.06 1.33 1.59 2.12 2.37 2.67 2.91 3.19 3.75 4.29 4.77
 12 1.07 1.34 1.60 2.14 2.40 2.69 2.94 3.21 3.78 4.32 4.82
 13 1.08 1.37 1.61 2.15 2.42 2.71 2.96 3.23 3.82 4.34 4.89
 14 1.09 1.38 1.62 2.17 2.45 2.73 2.99 3.26 3.85 4.38 4.95
 15 1.10 1.39 1.64 2.19 2.47 2.74 3.00 3.28 3.86 4.39 4.99
 16 1.11 1.40 1.65 2.20 2.49 2.76 3.02 3.30 3.87 4.40 5.03
 17 1.12 1.41 1.66 2.21 2.51 2.77 3.03 3.32 3.88 4.41 5.05
 18 1.14 1.42 1.68 2.23 2.53 2.79 3.05 3.34 3.89 4.42 5.07
  Nominal Pressure   Rated Burst Pressure

Summary of In-Hospital MACE*

Total
(N=102) n (%)
MACE 1/102 (0.98%)
Death 0
Cardiac Death 0
Non-Cardiac death 0
Myocardial Infraction 1 (0.98%)
TLR 0
Thrombosis 0
Arrhythmia requiring Medical treatment or Device intervention 0

User Ratings

Trackability 4.2*
Pushability 4.1*
Crossability 4.5*
Inflation time 4.4*
Deflation time 4.3*
Balloon Retrieval 4.2*

* Average based on physician score on a scale of 1-5, where 1 = poor and 5 = Excellent

Summary of MACE* (As Treated Population)

Summary of Device Procedural success Device success
(N=109)
n (%)
Successful Delivery of Vector to and across target lesion 109 (100 %)
Successful inflation 109 (100 %)
Successful deflation 109 (100 %)
Successful Removal 109 (100 %)
Safe removal 109 (100 %)
achievement of TIMI flow 3 109 (100 %)

* Data on file, SLTL



Summary of Device procedural Failure* Balloon Failure

(N= 109)
n (%)
Failure to cross lesion 0

Balloon Burst 0
Vessel Perforation 0
Flow limiting dissection 0
Reduction in TIMI flow from Baseline 0

* Data on file, SLTL
